Mobile concrete plant Sumab K-40 (40 m3/hour) Sweden

A representative of the Swedish company "Scandinavian & UK Machines AB" /SUMAB/ invites you to learn about equipment for the production of concrete and concrete products, including mobile and stationary concrete plants, and vibratory presses for the production of paving slabs and curbs.

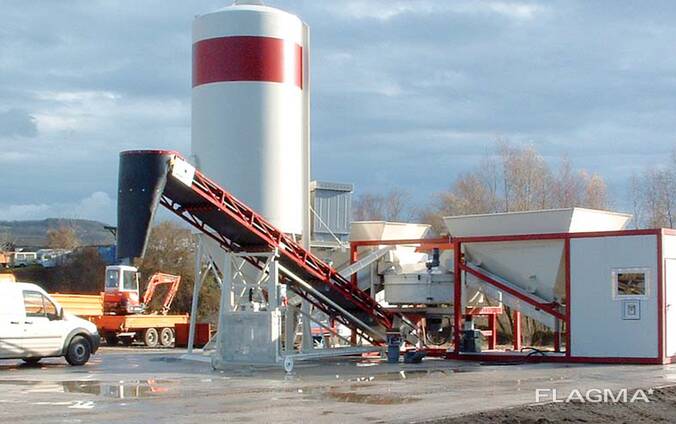

The Sumab K 40 mobile concrete plant is designed for the production of high-quality concrete and concrete mixes, with a capacity of up to 40 m³ per hour.

The exact plant performance depends on the type and grade of concrete produced, as well as the aggregates, cement, and chemical additives used in the production process.

The mobile concrete plant is equipped with a user-friendly control cabin and an automatic plant control system. A modern Siemens computer system allows for the production of 100 concrete formulas and grades. Each finished batch can be printed in kilograms and percentages, simplifying the monitoring of aggregates or cement during concrete mixing.

The basic plant configuration includes the following components:

1. Fully automated mobile concrete plant, with a capacity of 40 m³ per hour.
Mounted on a container frame.

2. Four 2.4 m³ aggregate bins.

3. Aggregate weighing sensors. Located under the planetary mixer.
Dosing accuracy +/- 100 g. Siemens, Germany.

4. Aggregate conveyor from the bins to the mixer, including a 4.5 kW electric motor. Located under the bins.

5. 1500/1000 liter pan mixer, lined with a 12 mm layer of special wear-resistant Hardox steel.

5 quick-release blades with fiberglass tips. Automatically opening ready-mix concrete feed flap.

6. Galvanized water tank, 250 liters, with a built-in Danfoss pump and water dispenser.

7. Mobile concrete plant control panel.

Manual control keyboard.

Light-touch screen for Siemens PC automatic plant control.

100 concrete grades with the ability to change the concrete grade before each batch. Printer with ready-mix data in kg and %.
Performance data per batch, hour, shift, and month.

8. Chemical admixture pump with hose, automatically controlled by the PC.

9. High-pressure compressor, 160 BAR, for cleaning the concrete plant.

10. Air compressor, 10 BAR.

24-month warranty.

Additional Options:

Cement feed auger – 220 mm diameter, 4.5 meters long. 5.5 kW electric motor. Integrated cement dosing sensors

Cement silo 60-100 tons, including filter, ladder, max-min levels, safety grate, and cement feed pipe.

Ready-mix concrete conveyor from the mixer. Length: 12 m, width: 1000 mm.

Thanks to the use of Scandinavian technology, our plants boast high durability and reliability.
Equipment delivery is always on time.

Over 20 years of reliable partnership.
Sumab concrete plants operate in Europe, Ukraine, Kazakhstan, South America, the Arab world, and Africa.

Over the course of our operations, the company has delivered over 500 concrete plants of various configurations and capacities.
To receive a commercial offer, please send a request to our email address.
