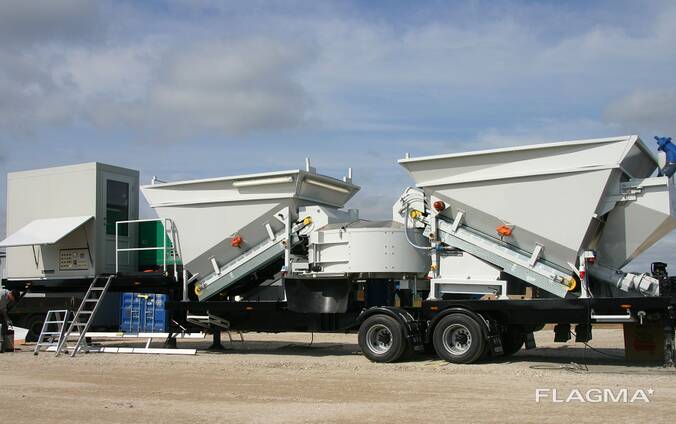

Mobile concrete plant SUMAB T-2200 (70-80 m3/h) Sweden

A representative of the Swedish company "Scandinavian & UK Machines AB" (SUMAB) invites you to explore equipment for the production of concrete and concrete products, including mobile and stationary concrete plants, vibratory presses for paving slabs and curbs, equipment for the production of precast concrete wall panels and blocks, and cement unloading and storage equipment. Cold mix asphalt plants are also available.

SUMAB offers high-quality equipment at factory prices, without intermediaries.
The company provides a full range of services, including delivery, commissioning, and maintenance.

Sumab mobile concrete plants have proven themselves to be reliable and high-quality equipment for the production of all types of concrete and concrete mixtures, ensuring high-quality concrete.
Concrete production is possible within 3 hours of delivery to the job site!
The mobile concrete plant can be easily moved from one site to another.
No foundation or approvals are required for plant installation!

The concrete plant can be installed on any site with a minimum size of 15 x 20 m.

The mobile concrete plant can produce over 50 grades of concrete, with recipes that can be changed for each subsequent batch.
Automatic plant control, Icon computer.
Sumab has over 40 years of experience manufacturing European-quality concrete plants.

T-2200 Mobile Concrete Plant:
Concrete production capacity: 70-80 m³ per hour.
Batch capacity: 1.45 m³.
The plant is mounted on two 13.6-meter frame semi-trailer chassis.

One paddle pan mixer, two integrated double hoppers, each for two types of aggregates and each with two separate material feed belts.
Also included are a water supply system, weighing chambers, batching equipment, and a control panel with a computer.
Control cabin.

The Sumab T-2200 mobile concrete plant can be installed on the customer's chassis.
1 x Type 2200 pan mixer
Capacity: 2200/1450 liters
Concrete throughput: 35-70 m³ per hour
Batch throughput: 1.45 m³
2 aggregate storage areas with a dosing belt for two types of aggregate.
The aggregate storage areas are constructed entirely of steel plate with reinforced corners.
Equipped with additional compartments, a sloping bottom, and an inlet for a conveyor belt.
- Capacity, gross capacity, each: approx. 2 x 2.4 m³
1 x cement pre-weighing silo

1 x high-pressure cleaner
Motor/pump with automatic start/stop. 15 m high-pressure hose with HUN quick coupling. Gun with swivel, 700 mm hose. Turbo nozzles mounted in a steel box.
Siemens automatic control panel.
1 air compressor
1 x 2 x 13.6 mm frame semi-trailer for complete plant installation.
1 control cabin.
1 set of safety equipment.
1 set of electrical equipment.
- Maximum power: 70 kW/125 A
- Operating voltage: 3 x 400 volts - 50 Hz N PE
- Control voltage: Input: 24 V DC (PNP)
- Control voltage: Output: 230 V AC, 50 Hz or 24 V DC.

Thanks to Scandinavian technology, our plants boast a high level of durability and reliability.
Equipment delivery is on time.
Over 20 years of reliable partnership.

Sumab concrete plants operate in Europe, Ukraine, Kazakhstan, South America, the Arab States, and Africa. Over the course of the company's operations, we have delivered over 500 concrete mixing plants of various configurations and capacities.

To receive a commercial offer, please send a request to our email address.
