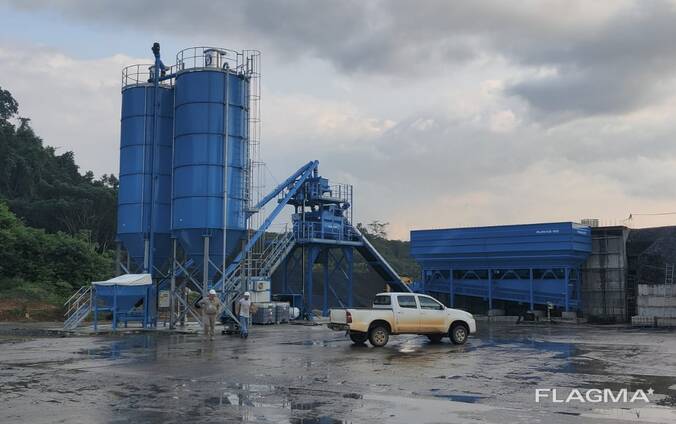

Stationary concrete plant SUMAB T30 (30 m3/h) Sweden

A representative of the Swedish company "Scandinavian & UK Machines AB" (Sumab) invites you to learn about equipment for the production of concrete and concrete products: mobile and stationary concrete plants, vibratory presses for paving slabs and curbs, equipment for the production of precast concrete wall panels and blocks, cement unloading and storage equipment, and cold mix asphalt plants.

Sumab offers high-quality equipment at factory prices, without intermediaries.

The company provides a full range of services, including delivery, commissioning, and maintenance.

Stationary concrete plant Sumab T30 (30 m³/h) Sweden.

Actual capacity: 20–30 m³/hour (depending on concrete grade)

Installed power: 50 kW
Aggregate bin capacity: 3 x 8 m³
Aggregate mixer loading method: Skip
Mixer brand and type: Sicoma, planetary mixer
Mixer capacity: 1125/750 l

Control system: Siemens PLC + Siemens Touch

• 3 bins, each with a capacity of 8 m³

• Pressed panels with bolted connections • Discharge from one electropneumatically controlled gate on each bin

• Pneumatic cylinder Ø100 mm (with throttle for stroke adjustment): 3 pcs.

• Sand bin vibrators: 2 pcs.

• Support structure and supports

• Pneumatic distributor: 3 pcs.

200 kg vibrators.
Three vibrators are installed in the aggregate storage area and cement silo.

A conveyor-doser for aggregates from bins to the mixer, including an electric motor (0-1500 kg).

Equipped with four load cells with high dosing accuracy.

Aggregate feed is dosed using Siemens sensors.

Sensor load: 2000 kg.

Aggregate feed rate of at least 120 m³ per hour.

Skip hoist and material bucket

• Drive: 6.3/7.5 kW geared motor (two-speed) + brake system

• Aggregate bucket capacity: 1125 l

• Cable breakage protection system

Sicoma planetary mixer, 1125/750 liters.

The mixer is mounted on a frame made of metal profiles with a supporting platform.

• Loading capacity: 1125 liters
• Compacted concrete capacity: 750 liters

• Rotation: 24 rpm
• Drive: Planetary gear motor +22 kW
• Number of blades/scrapers: 6/2
• Equipped with replaceable armor

Cement batcher (300 kg).
Equipped with a load cell for accurate material weighing.

Water feeder, 250 liters per minute
The water batcher is fully galvanized and equipped with a load cell.

Chemical additive batcher (15 liters) - two types.
• Capacity: 2x15 liter tanks (galvanized)
• High-precision load cell: 1 pc.

Compressed air unit.
Includes a compressor, pneumatic cylinders, pneumatic valves, valves, air regulators, and compressed air supply hoses.

Automatic control cabinet.
The cabinet is IP55 rated, completely sealed, and illuminated. All contactors, circuit breakers, and the main switch are Siemens.

Automated concrete plant control system using a reliable Siemens S7-1200 programmable logic controller (PLC). A Siemens touchscreen panel enables automatic and manual operation.

Control cabin with computer and electrical panel.

Dimensions: 4 x 2.5 x 2.5 m.
