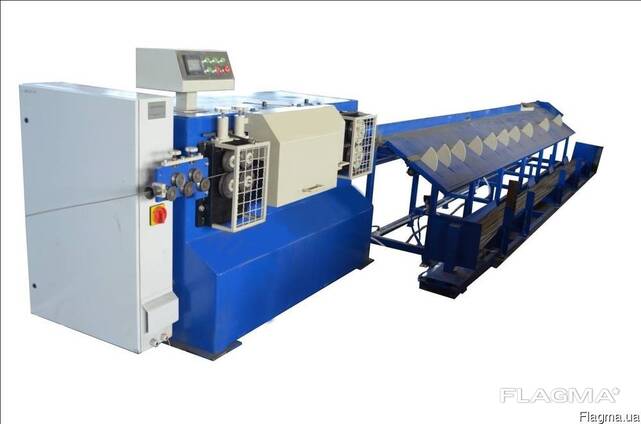

Straightening and cutting machine IS10R 4-10 mm, roller

IS10 R Straightening and Cutting Machine

Uses a roller straightening mechanism that reduces rib damage by 50%, operating noise by 30%, pollution by 30%, and higher machine speed.

Electric Feed Unit OD 3000:1
IS10R Straightening and Cutting Machine: 1:1
Finished Wire Table PSR 6000:1

- Electric Feed System

Housing: Welded steel construction
Feed Direction: Left to Right
Load Capacity: Max. Spool weight: 3,000 kg
Brake: Brake cylinder
Dimensions: 1,500 x 2,000 x 1,500 mm

Weight: 1,000 kg

IS10R Straightening and Cutting Machine

Body: Welded steel construction
Feed: Left to right
Drive type: Electric motor
Power: 30 kW
Weight: 1,800 kg
Dimensions: 900 x 1,800 x 800 mm

Technical specifications:

Wire diameter, mm: 4-10

Wire strength, max., N/mm2: 750

Speed, m/min: 130

Straightening type: Rollers

Total power, kW: 30

Drive type for traction: Electric motor (servo drive)

Drive type for cutting: Electromotor

Cutting accuracy per 1 Corrected wire meter +/- 2 mm

Straightening accuracy, % per 1 m - 1%

Minimum/maximum cutting length, mm 100-12,000

Cutting type - With stop

Total weight, kg 2,200

Dimensions, mm 1,500 x 12,500 x 1,600

Productivity, 8 mm/hour - 2,300 kg

PSR 12000 wire feed table

Housing: Welded steel construction
Feed direction: Left to right
Maximum wire length: 12,000 mm
Finished wire feed table: Automatic unit
Stages: 2 stages

12-month warranty
