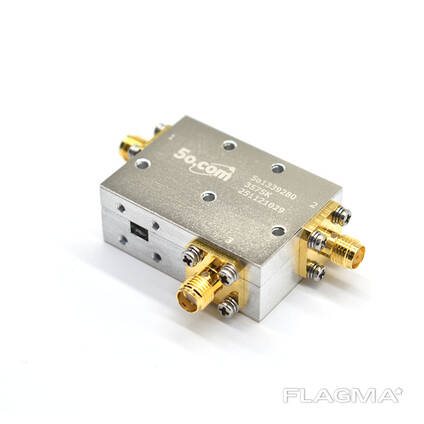

3.5 to 7.0GHz Dual Junction Coaxial Circulator High Isolation Low Loss SMA Connector
1 / 4
Добавлено:
10 декабря 2025, 05:30
ID: 1722433
80 $/штука
Kelly Hu
manager
Описание
"Product Features:
Model Number: 5o1339280357SK
Frequency Range 3.5 to 7.0GHz
Isolation Min: 40dB
VSWR Max: 1.25
Insertion Loss Max: 0.8dB
Connector Type: SMA-K
Forward Power: 60W
Reverse Power: 60W
Impedance: 50 ohm
Operating Temperature: -40 to +85 degrees C
Storage Temperature: -55 to +125 degrees C
Dimensions: 39 mm x 28 mm x 15 mm
Applications:
RF power amplifier protection
Digital satellite and mobile communication systems
Medical communication and security equipment
Military space and commercial applications
Radar and electronic warfare systems
Recommended Matching Products:
RF power amplifiers
Transceiver modules
Base station equipment
Test and measurement instruments
Satellite communication systems
Additional Notes:
Can be configured in dual or multiple junctions for higher isolation
Connector options available including SMA Male Female N Male Female etc
Custom frequencies available upon request based on user requirements
Backed by a one year standard warranty
Designed for reliable performance in commercial industrial and defense applications"
Характеристики
Код товара
5o1339280357SK
