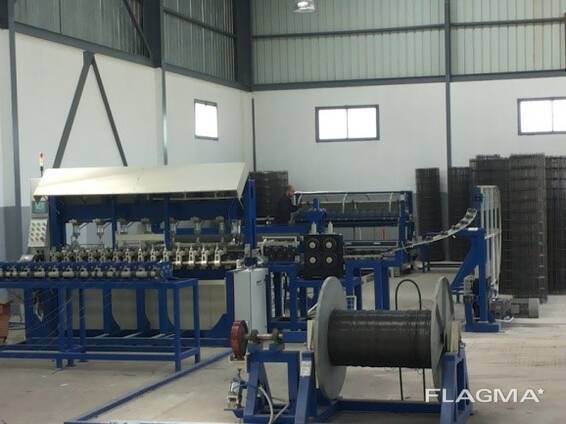

Automatic welding machine VM2400/4-10 CB coil

Automatic welding machine VM2400/4-10 CB coil/coil.

The offer consists of:

Spool stand: 1 unit
Linear wire straightening unit: 1 unit
Welding machine: 1 unit
Cross wire adding unit: 1 unit
Scissors for cutting finished mesh: 1 unit
Mesh stacking and tipping unit: 1 unit

Spool stand

Housing: Welded steel construction
Wire direction: Left to right
Number of spools: 24
Dimensions: 2400 x 15000 mm
Weight: 1000 kg

Linear wire straightening unit

This is used to straighten longitudinal wires. The unit has a sensor to detect the presence of wires. If there are no wires, the sensor will stop the machine.

Housing: Welded steel construction
Wire direction: Left to right

Number of wire slots: 24

Dimensions: 2700 x 1800 mm

Weight: 1000 kg

Welding machine

Welds: Low-carbon wire

Wire diameter: 4.00 ÷ 10.00 mm
Speed: 40-70 cycles/min
Longitudinal pitch: 100 - 200 mm
Transverse pitch: Adjustable from 50 mm ÷ 250 mm
Number of electrodes: 24

Mesh width: 2500 mm

Number of transformers: 12
Transformer power: 12 x 100 kW
Cooling: Water
Operating modes: All together
Individual
Voltage: Operating: 3x380V 24V AC Control System
Control System: PLC

Cross Wire Adding Unit

This unit is used to add cross wires.

Finished Mesh Cutting Shears

Used for cutting finished mesh.

Dimensions: 2800x1600x500 mm
Cutting Width: Max. 2500 mm

Cutting Type: Hydraulic
Power: 22 kW

Mesh Stacking and Turning Unit

This unit is used for stacking and packaging mesh.

Maximum mesh count per package: 50 pieces (500 mm)

Housing: Welded steel
Maximum mesh width: 2400 mm
Maximum mesh length: 6000 mm
Tilting type: Electromotors
Power: 12 kW

Automatic welding line specifications:

Mesh width: 2400 mm

Mesh length: 6000 mm

Wire diameter: 4-10 mm

Longitudinal pitch: 100-200 mm

Transverse pitch: 50-250 mm, adjustable

Siemens PLC control panel

Servomotor, Yaskawa drives

Number of transformers: 12

Transformer power: 100 kVA

Welding speed: cycles/min. 40-70

Operating Options

1. Combined

2. Individual

Power, V 3x380

Electrode Cooling: Water

Air Flow, m³/min 3.5-5

Air Pressure, bar 6-7.5

Water Flow, l/min 30-45

Adding Longitudinal Wires - Automatic Reel

Adding Crossover Wires - Automatic

Wire Mesh Production Line Dimensions, mm 45000x7000x2000

Mesh Cutting Shears: Hydraulic

Mesh Turning System

Automatic Mesh Pusher
