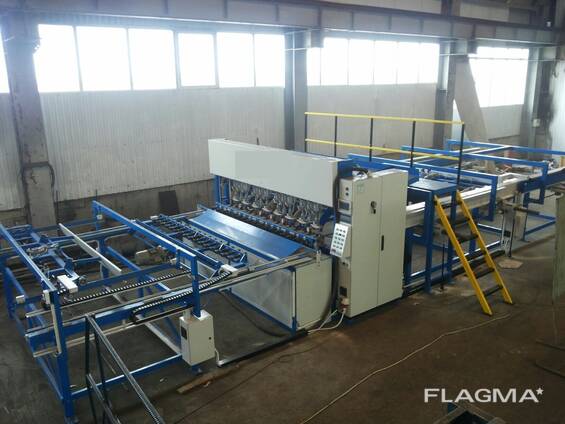

Automatic welding machine VM2400/4-10 CB

Automatic welding machine VM2400/4-10 CB, coil/coil wire feed, mesh width 2400 mm.

1. Spool stand: 1 unit
2. Longitudinal wire straightening unit: 1 unit
3. Welding unit: 1 unit
4. Cross wire adding unit: 1 unit
5. Finished mesh cutting holes: 1 unit
6. Mesh stacking and tilting unit: 1 unit

1. Spool stand
• Body: Welded steel construction
• Wire direction: Left to right
• Number of spools: 24
• Dimensions: 2400 x 15000 mm
• Weight: 1000 kg

2. Longitudinal wire straightening unit
This is used to straighten longitudinal wires. The unit has a sensor to detect the presence of wire. If there are no wires, the sensor will stop the car.

• Housing: Welded steel construction
• Wire direction: Left to right
Number of wire slots: 24
• Dimensions: 2700 x 1800
• Unit weight: 1000 kg

3. Welding machine

Welds: Low-carbon wire
• Wire diameter: 4.00 ÷ 10.00 mm
• Speed: 40-70 cycles/min
• Longitudinal pitch: 100 - 200 mm
• Transverse pitch: Adjustable from 50 mm ÷ 250 mm
• Number of electrodes: 24
Mesh width: 2500 mm
• Number of transformers: 12
• Transformer power: 12 x 100 kW
• Cooling: Water
• Operating modes: 1. All together
• 2. Individually
• Voltage: Operating: 3x380V AC
24VDC Control System
• Control System: PLC

4. Crossover Wire Adding Unit

5. Finished Mesh Cutting Shears are used to cut finished mesh.

• Size: 2800x1600x500 mm
• Cutting Width: Max. 2500 mm
• Cutting Type: Hydraulic
• Power: 22 kW

6. Finished Product Stacking and Turning Unit
This unit is used for stacking and packaging mesh.
Maximum mesh count per package: 50 pieces (500 mm)

• Body: Welded steel
• Maximum mesh width: 2400 mm
• Maximum mesh length: 6000 mm
• Tipping type: Electromotors
• Power: 12 kW

Automatic welding line specifications:

Mesh width: 2400 mm
Mesh length: 6000 mm
Wire diameter: 4-10 mm
Longitudinal pitch: 100-200 mm
Transverse pitch: 50-250 mm, adjustable
Control panel: Siemens PLC
Servomotor, Yaskawa drives
Number of transformers: 12
Transformer power: 100 kVA
Welding speed: cycles/min. 40-70

Operating options
1. Combined
2. Individual

Power, V 3x380
Electrode cooling: Water
Air flow, m³/min 3.5-5
Air pressure, bar 6-7.5
Water flow, l/min 30-45

Adding longitudinal wires: Automatic reel
Adding crossover wires: Automatic
Wire mesh production line dimensions, mm 45000x7000x2000
Mesh cutting shears: Hydraulic
Mesh turning system
Automatic mesh ejector

12-month warranty
